TL;DR

Here I compare Gnome Remote Desktop, RustDesk and x11vnc.

I ended up using Gnome Remote Desktop for “Desktop Saring”, but not for “Remote Login” because it doesn’t work without Network Manager, and I don’t use Network Manager. Also, it doesn’t allow logging into the physical desktop (see below).

Instead, I use x11vnc for the initial logging in to the physical desktop, which requires GDM to run with wayland disabled and it is a little cumbersome.

While RustDesk seems to work fine, it requires a custom client and a self-hosted server (or using somebody else’s server) and I’m not sure I trust it; a gut feeling, that could be wrong.

Background

I have a desktop machine at home, and I want to be able to access it remotely.

I already have wireguard set up to access my home network, so I don’t need to traverse firewalls or have my desktop accessible from the internet. In fact I’d prefer not to.

And what i want to access is the “real” desktop that I see on my monitor at home. See that window I know I left open, close that app “nicely” that I know I left running. Not a virtual desktop.

This is about the options I have for accessing a Gnome desktop remotely and which I’ve picked.

In the following, I’ll distinguish between “pysical” login screens and desktops (those you can also see on a monitor connected to the physical machine) and “virtual” login screens and desktops that are not shown directly anywhere.

Security considerations

The problem with accessing the “real” desktop is that this desktop will be unlocked and available to anyone in the vicinity of the machine whose desktop I’m accessing. And if I’m not there, the mere fact of “unlocking” the desktop might give unauthorized parties access to an otherwise locked desktop.

This is something I can live with, though, since only my wife and daughter have physical access to that desktop machine, and I trust them. It is something to consider, though.

Stored passwords

Most of the solutions store passwords for remote access in clear text, which kinda sucks. See below.

My environment

I’m using Gnome under NixOS. I’ve tried everything here with Gnome under Ubuntu 24.04 too.

The two steps of “desktop access”

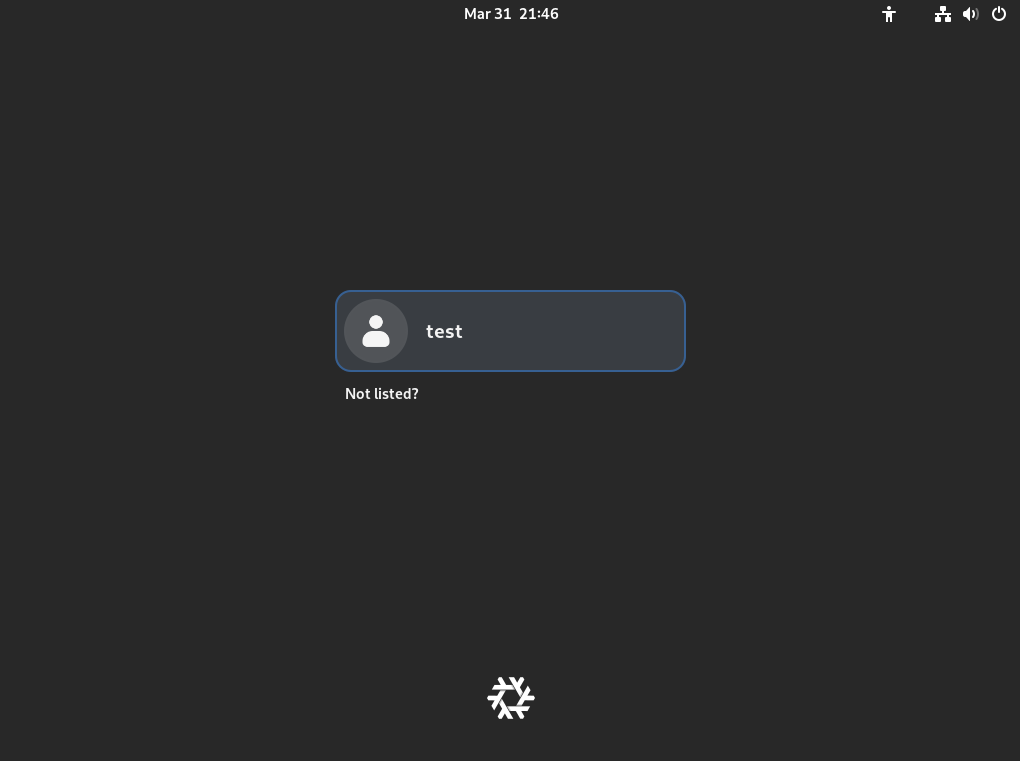

It is not enough to be able to access a physical desktop that has already been started, I also need to be able to start the desktop. And unless the system has been setup to auto-login, when sitting in front of the monitor, when using Gnome, first the user sees the GDM login screen:

and after logging in, they see the desktop:

So we need to be able to login from a remote location and view the desktop afterwards.

The contenders

These are the solutions I’ve considered:

• Gnome Remote Desktop: offering RDP access to a gnome desktop
• RustDesk: The new kid on the block
• x11vnc: The old trusted solution

I’ve kicked the tires on all of them, and spoiler alert: I’ll be using a combination of Gnome Remote Desktop and x11vnc. But I’ll describe why.

Gnome Remote Desktop: offering RDP access to a gnome desktop

Gnome remote desktop is really two solutions:

1. “Desktop Sharing”: Access the desktop of somebody who has already logged in to the desktop on the physical machine.
2. “Remote Login”: Logging in as a user who is not logged in to the desktop on the physical machine.

“Desktop Sharing” gives RDP access to a running physical desktop. Access is prevented by default if the desktop is locked because of inactivity. This is a security measure to avoid unlocking the physical desktop for all to see and access. I understand this limitation, but it would have made Gnome Remote Desktop’s “Desktop Sharing” useless to me, if it wasn’t for the Allow Locked Remote Desktop GNOME Shell Extension that exactly lifts this limitation. And then it works brilliantly.

“Remote Login” works a little differently than I first thought. It runs on another TCP port than “Desktop Sharing”. When you connect with RDP, you see a virtual GDM login screen, and if you try to login as a user that is already logged in on the real desktop, you’ll get an error. Otherwise, it will start a virtual desktop in that user’s name. So it doesn’t allow you to start the “physical” desktop.

Together, one can use “Desktop Sharing” if the physical desktop has already been started, and “Remote Login” if it hasn’t. The only problem is that if you forget to logout from the virtual desktop, you will not be able to login to the physical desktop while the virtual desktop is running. I could live with that.

However, there seems to be a problem getting “Remote Login” to work without Network Manager. And I don’t use Network Manager, but have configured the network statically in NixOS, so for now, I need to either use Network Manager or not use “Remote Login”.

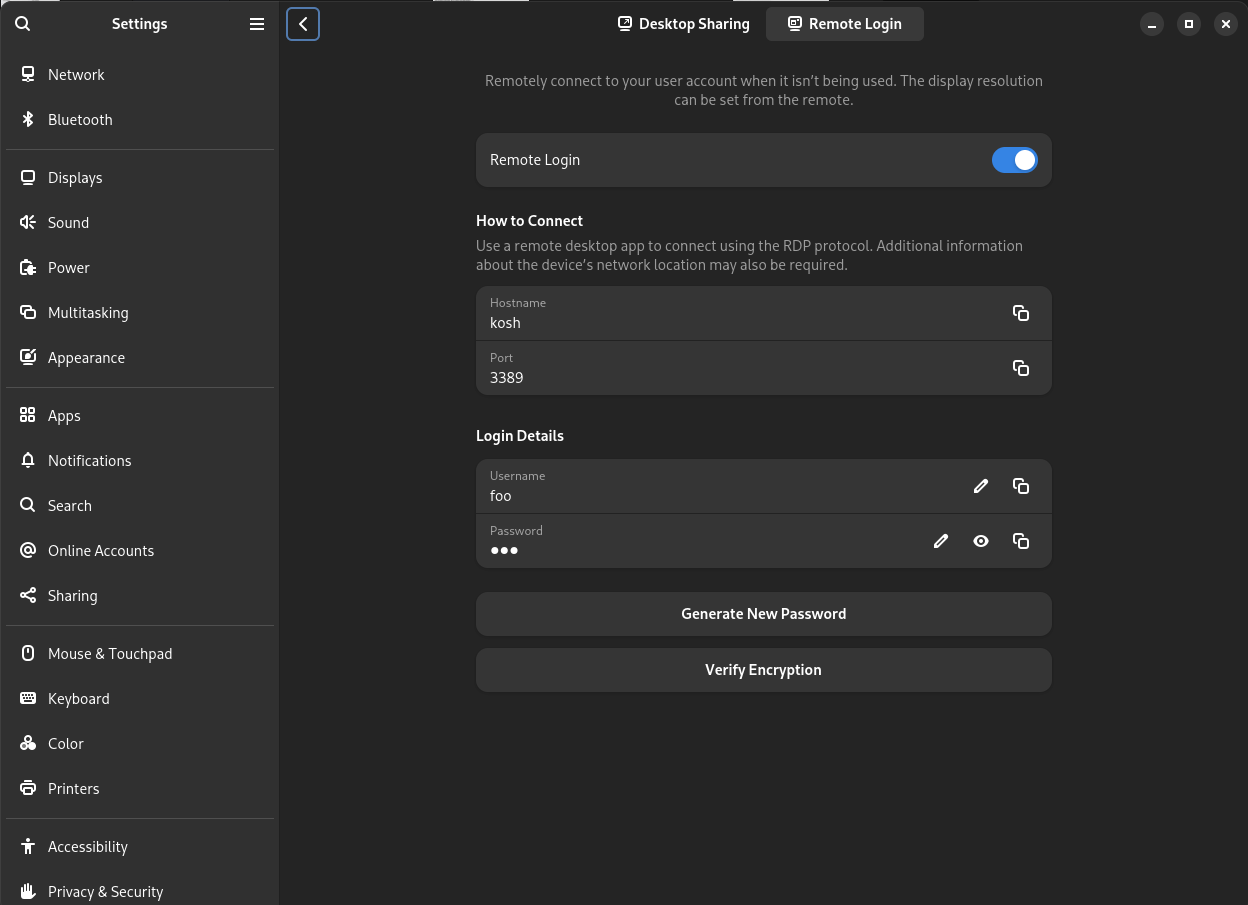

Gnome Remote Desktop is configured in Gnome Settings -> System -> Remote Desktop in two tabs:

How are Gnome Remote Desktop passwords stored?

For “Desktop Sharing”, they’re stored in Gnome’s “Passwords and Keys” (Seahorse)

Where “Copy” then copies {'username': <'test'>, 'password': <'bar'>}.

For “Remote Login”:

sudo cat /var/lib/gnome-remote-desktop/.local/share/gnome-remote-desktop/credentials.ini
[RDP]
credentials={'username': <'foo'>, 'password': <'bar'>}

So in both cases stored as clear text. ☹️

RustDesk: The new kid on the block

Rustdesk seems to handle both the physical GDM login and accessing the physical desktop just fine.

I had difficulties getting RustDesk to work as a service in NixOS, but I finally managed.

I’m self-hosting the server part so I’m fully self-hosted also for rustdesk.

I could not find any clear info about where/how rustdesk stores passwords, so I’m assuming it is in clear text somewhere (please let me know if I’m wrong).

A very prolific NixOS poster remarked about the way rustdesk uses sudo:

Whoa, that’s quite some horrible application code. This should be done with polkit. I’d seen this project around, really expected slightly better quality from it…

RustDesk used to only support X11, but now has experimental Wayland support since version 1.2.0.

x11vnc: The old trusted solution

This only works for X11, and not for wayland. (Which is perhaps why Gnome Remote Desktop was created?)

I log into the desktop machine with ssh and start x11vnc when I need it. This is a little cumbersome, but I never bothered creating services for this.

GDM login

Use this if the user has not yet logged in to the physical desktop. As it turns out, this is the only thing I ended up using x11vnc for in the end:

One-time setup

First make sure that wayland is disabled for GDM. This will make GDM itself use X11, and only allow you to start your desktop with X11. Edit /etc/gdm/custom.conf and make sure it contains:

[daemon]
WaylandEnable=false

(Without the comment character # in front of WaylandEnable=false).

Reboot (or restart GDM) if you had to change /etc/gdm/custom.conf.

Then create a x11vnc password for GDM. Usually x11vnc wants to store the password file in the user’s home directory, but at least on NixOS, for the gdm user, that is /run/gdm, which is deleted completely on every reboot. Instead create the password file like this:

sudo mkdir /home/gdm
sudo chown gdm: /home/gdm
sudo chmod 0700 /home/gdm
sudo -u gdm x11vnc -storepasswd /home/gdm/passwd
Enter VNC password: <enter password>
Verify password:    <enter password>
Write password to /home/gdm/passwd?  [y]/n y
Password written to: /home/gdm/passwd

Login with GDM

Then, to view the the physical GDM login screen remotely, start x11vnc like this:

sudo -u gdm x11vnc -once -rfbauth /home/gdm/passwd \
    -auth /run/user/$(id -u gdm)/gdm/Xauthority \
    -display :0 -rfbport 5901

Now you can connect with vnc to port 5901, see GDM and login. Once you’ve logged in, the vnc screen will disappear and x11vnc will exit because of the -once option. It was just for the GDM login.

See user’s physical desktop

Run this to see the logged in desktop (assuming you’re logged in with ssh as the same user showing the desktop). Again, this only works if the desktop session is using X11 (and not Wayland):

x11vnc -usepw \
    -auth /run/user/$(id -u)/gdm/Xauthority \
    -display :1 -forever -rfbport 5901

(You may need to check whether the physical desktop uses DISPLAY :0 or :1. Mine uses :1.)

Summary

See TL;DR at the top 🙂
